推力球陶瓷軸承
|
|
|
推力球不銹鋼軸承尺寸表
|
|
|

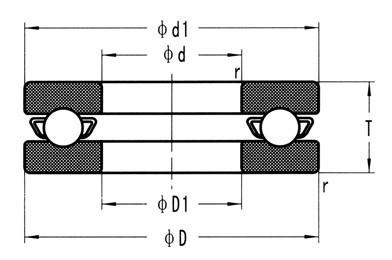

外形尺寸(mm)
|
安裝相關尺寸(mm)
|
重量(kg)(參考)
|
|
軸承型號
|
d
|
D
|
T
|
r(最小)
|
d1 最大
|
D1 最小
|
ZrO2
|
Si3N4
|
|
|
|
51100CE
|
10
|
24
|
9
|
0.3
|
24
|
11
|
0.015
|
0.0078
|
|
|
|
51200
|
26
|
11
|
0.6
|
26
|
12
|
0.022
|
0.011
|
|
|
|
51101
|
12
|
26
|
9
|
0.3
|
26
|
13
|
0.016
|
0.009
|
|
|
|
51201
|
28
|
11
|
0.6
|
28
|
14
|
0.024
|
0.013
|
|
|
|
51102
|
15
|
28
|
9
|
0.3
|
28
|
16
|
0.018
|
0.0094
|
|
|
|
51202
|
32
|
12
|
0.6
|
32
|
17
|
0.033
|
0.018
|
|
|
|
51103
|
17
|
30
|
9
|
0.3
|
30
|
18
|
0.019
|
0.010
|
|
|
|
51203
|
35
|
12
|
0.6
|
35
|
19
|
0.038
|
0.021
|
|
|
|
51104
|
20
|
35
|
10
|
0.3
|
35
|
21
|
0.028
|
0.015
|
|
|
|
51204
|
40
|
14
|
0.6
|
40
|
22
|
0.059
|
0.032
|
|
|
|
51105
|
25
|
42
|
11
|
0.6
|
42
|
26
|
0.043
|
0.023
|
|
|
|
51205
|
47
|
15
|
0.6
|
47
|
27
|
0.085
|
0.046
|
|
|
|
51106
|
30
|
47
|
11
|
0.6
|
47
|
32
|
0.049
|
0.026
|
|
|
|
51206
|
52
|
16
|
0.6
|
52
|
32
|
0.11
|
0.056
|
|
|
|
51107
|
35
|
52
|
12
|
0.6
|
52
|
37
|
0.062
|
0.033
|
|
|
|
51207
|
62
|
18
|
1
|
62
|
37
|
0.16
|
0.086
|
|
|
|
51108
|
40
|
60
|
13
|
0.6
|
60
|
42
|
0.092
|
0.049
|
|
|
|
51208
|
68
|
19
|
1
|
68
|
42
|
0.21
|
0.11
|
|
|
|
51109
|
45
|
65
|
14
|
0.6
|
65
|
47
|
0.11
|
0.059
|
|
|
|
51209
|
73
|
20
|
1
|
73
|
47
|
0.24
|
0.13
|
|
|
|
51110CE
|
50
|
70
|
14
|
0.6
|
70
|
52
|
0.12
|
0.063
|
|
|
|
51210CE
|
78
|
22
|
1
|
78
|
52
|
0.29
|
0.16
|
|
|
|
51111CE
|
55
|
78
|
16
|
0.6
|
78
|
57
|
0.17
|
0.093
|
|
|
|
51211CE
|
90
|
25
|
1
|
90
|
57
|
0.46
|
0.25
|
|
|
|
51112CE
|
60
|
85
|
17
|
1
|
85
|
62
|
0.22
|
0.12
|
|
|
|
51212CE
|
95
|
26
|
1
|
95
|
62
|
0.52
|
0.28
|
|
|
|
51113CE
|
65
|
90
|
18
|
1
|
90
|
67
|
0.25
|
0.13
|
|
|
|
51213CE
|
100
|
27
|
1
|
100
|
67
|
0.58
|
0.31
|
|
|
|
51114CE
|
70
|
95
|
18
|
1
|
95
|
72
|
0.27
|
0.14
|
|
|
|
51214CE
|
105
|
27
|
1
|
105
|
72
|
0.61
|
0.33
|
|
|
|
51115CE
|
75
|
100
|
19
|
1
|
100
|
77
|
0.30
|
0.16
|
|
|
|
51215CE
|
110
|
27
|
1
|
110
|
77
|
0.65
|
0.35
|
|
|
|
51116CE
|
80
|
105
|
19
|
1
|
105
|
82
|
0.32
|
0.17
|
|
|
|
51216CE
|
115
|
28
|
1
|
115
|
82
|
0.72
|
0.38
|
|
|
|
51117CE
|
85
|
110
|
19
|
1
|
110
|
87
|
0.34
|
0.18
|
|
|
|
51217CE
|
125
|
31
|
1
|
125
|
88
|
0.94
|
0.50
|
|
|
|
51118CE
|
90
|
120
|
22
|
1
|
120
|
92
|
0.50
|
0.27
|
|
|
|
51218CE
|
135
|
35
|
1.1
|
135
|
93
|
1.30
|
0.69
|
|
|
|
51120CE
|
100
|
135
|
25
|
1
|
135
|
102
|
0.74
|
0.39
|
|
|
|
51220CE
|
150
|
38
|
1.1
|
150
|
103
|
1.73
|
0.92
|
|
|
|
51122CE
|
110
|
145
|
25
|
1
|
145
|
112
|
0.80
|
0.43
|
|
|
|
51124CE
|
120
|
155
|
25
|
1
|
155
|
122
|
0.86
|
0.46
|
|
|
|
| |
|
|
|
|
